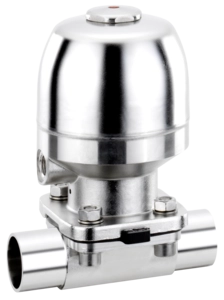

2" on 4" T Pneumatic Diaphragm Valve (Gemu size 50)
$2,617.00
Reliable shipping
Flexible returns
| Item number: | 88676003 | |
| Description |
| Type | 650 | Diaphragm valve, pneumatically operated, stainless steel piston actuator electropolished, optical position indicator |
| DN | 50 | DN 50 |
| Body configuration | T | T body |
| Connection type | 59 | Spigots ASME BPE |
| Valve body material | 41 | 1.4435 (316L), block material |
| Diaphragm material | 5E | PTFE/EPDM two-piece (now 5M) |
| Control function | 1 | Normally closed (NC) |
| Actuator version | 4T1 | Operator size 4T1 |
| DN -2 | 100 | DN 100 |
| Connection type spigot 2 | 59 | Spigots ASME BPE |
| Execution type | SF5 | Ra Max. 0.51 µm (20 µin.) for media wetted surfaces, to ASME BPE SF5, electropolished internal / external |
| Surface | SF5 | Ra Max. 0.51 µm (20 µin.) for media wetted surfaces, to ASME BPE SF4, electropolished internal / external |
| Diaphragm size | 50 | Diaphragm size 50 |
WELD CONNECTIONS: 2" (1) on 4" (2)
4242 Gemu Combi Switchbox
The GEMÜ 650 BioStar T-way diaphragm valve has a stainless steel piston actuator and is pneumatically operated. The valve is designed for use in a sterile environment. All actuator parts are made from stainless steel (except seals). The compression springs of diaphragm sizes 80 and 100 are made of epoxy-coated spring steel. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available. An integrated optical position indicator is standard.
NOTE: Shipped, stored, unused or installed; condition: light, external ware visible.
