0.75" on 0.75" T Pneumatic Diaphragm Valve (Gemu size 10)
$490.00
Reliable shipping
Flexible returns
| Item number: | 88767674 | |
| Description |
| Type | 650 | Diaphragm valve, pneumatically operated, stainless steel piston actuator electropolished, optical position indicator |
| DN | 20 | DN 20 |
| Body configuration | T | T body |
| Connection type | 59 | Spigots ASME BPE |
| Valve body material | 41 | 1.4435 (316L), block material |
| Diaphragm material | 52 | PTFE/EPDM one-piece (now 54) |
| Control function | 1 | Normally closed (NC) |
| Actuator version | 1T1 | Operator size 1T1 |
| DN -2 | 20 | DN 20 |
| Connection type spigot 2 | 59 | Spigots ASME BPE |
| Execution type | SF3 | Ra Max. 0.76 μm (30 μin.) for media wetted surfaces, to ASME BPE SF3, mechanically polished internal |
| Surface | SF3 | Ra Max. 0.76 μm (30 μin.) for media wetted surfaces, to ASME BPE SF3, mechanically polished internal |
| Diaphragm size | 10 | Diaphragm size 10 |
WELD CONNECTIONS: 0.75" (1) on 0.75" (2)
4242 Gemu Combi Switchbox

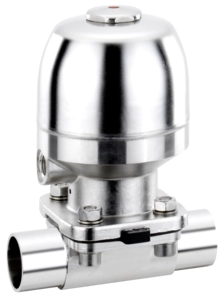

The GEMÜ 650 BioStar T-way diaphragm valve has a stainless steel piston actuator and is pneumatically operated. The valve is designed for use in a sterile environment. All actuator parts are made from stainless steel (except seals). The compression springs of diaphragm sizes 80 and 100 are made of epoxy-coated spring steel. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available. An integrated optical position indicator is standard.
NOTE: Shipped, stored, unused or installed; condition: light, external ware visible.
